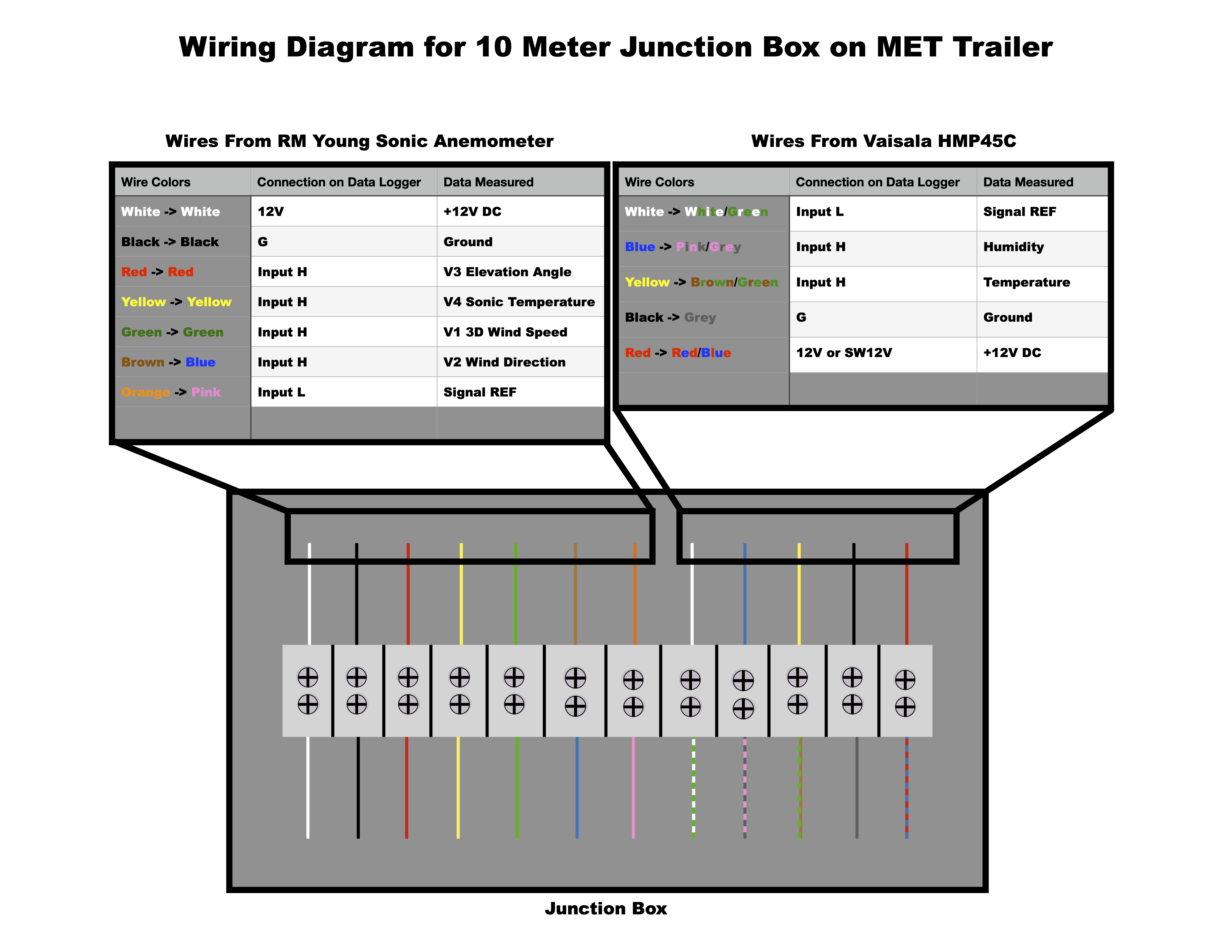

Wire Diagram for the 12* Meter Junction Box

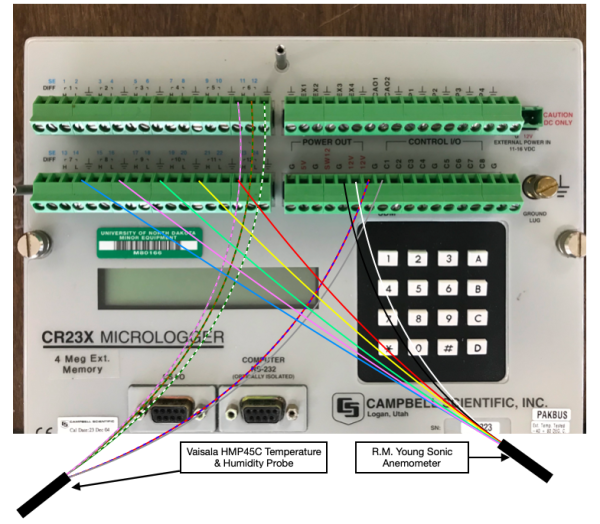

CR23X Micrologger Wiring Diagram for 12 Meter Bar

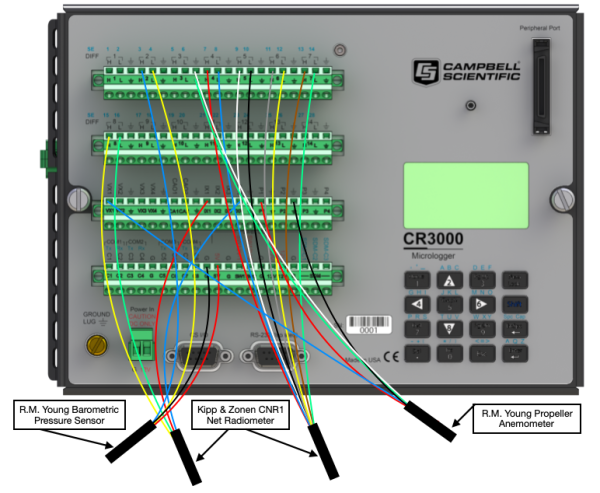

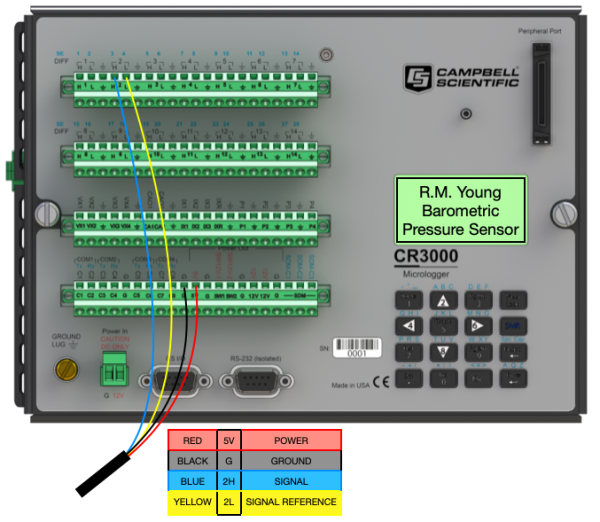

CR3000 Micrologger Wiring Diagram
