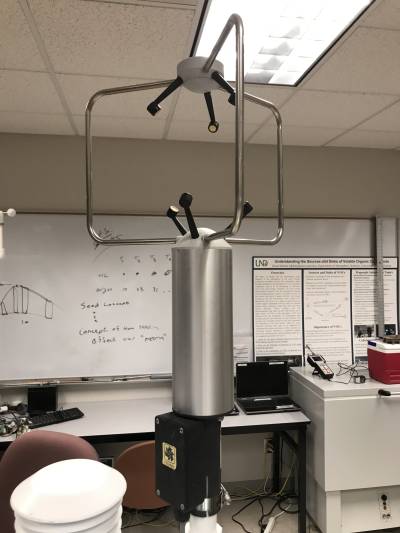

R.M. Young 81000 3 Axis Sonic Anemometer

  • Manufacturer: R.M. Young
  • Model Number: 81000
  • Serial Number: 01873, 01870
  • Tag Number: M94500, M94522
  • Date Installed: June 23, 2020
  • Date Calibrated: February 2020
  • Serial Data Configuration: Baudrate 38400, Data Bits 8, Parity None, Stop Bits 1.
ANALOG SETUP
DIGITAL SETUP

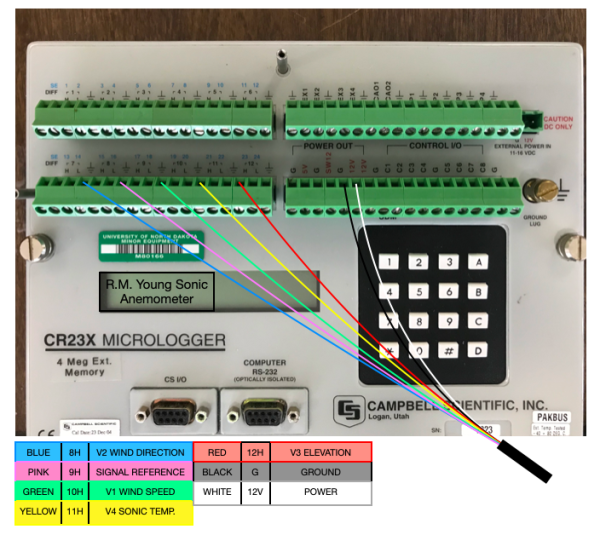

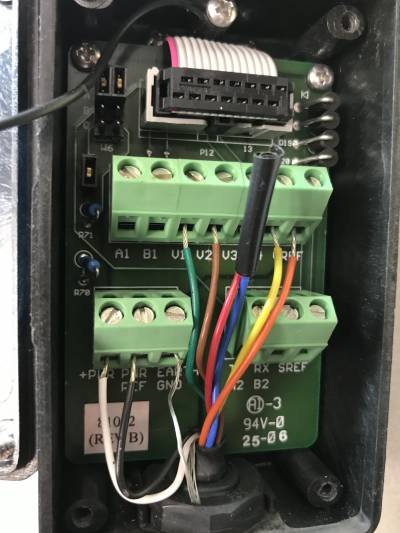

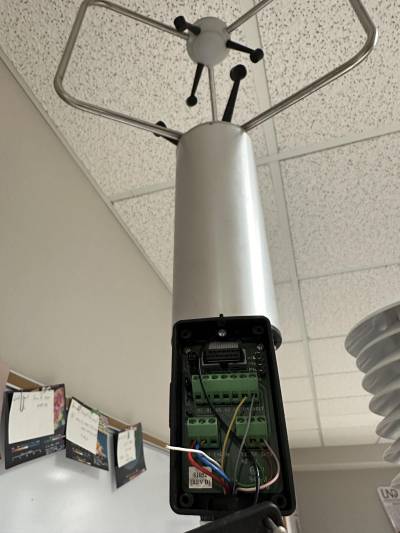

  • This is the wire configuration for the digital setup of the R.M Young 81000.

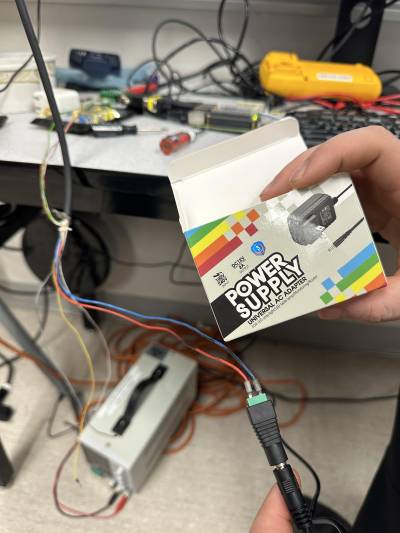

  • Power input should be 12VDC, so a AC to DC converter is required.
